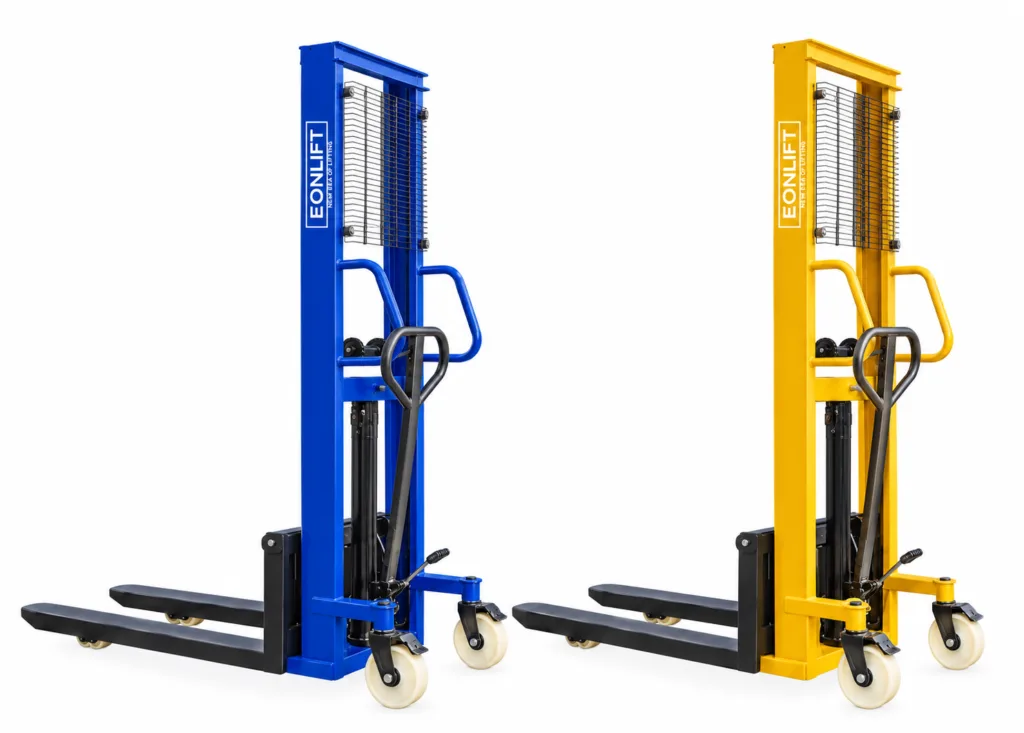

Material Handling Equipment Manual Stacker
Compact and Reliable , this manual stacker feature a chain -driven mechanism , allowing easy lifting of up to 1 ton with a height of 1.6 meter -a practical solution for light material handling.
PROJECT ENGINEERING TEAM
PROJECT OVERVIEW
A Manual Stacker is a manually operated material handling machine designed for lifting, moving, and stacking palletized materials at various heights. It uses a hydraulic lifting system operated through a hand lever or foot pedal to raise and lower the forks smoothly and efficiently.
The main objective of a manual stacker is to reduce manual handling effort, improve workplace productivity, and provide a cost-effective solution for lifting and stacking heavy loads without requiring electrical power.
PROJECT OVERVIEW
- Design and Planning
Determine the required load capacity, lifting height, fork dimensions, and overall structure of the manual stacker.
- Material Selection
Select suitable materials such as mild steel for the frame, forks, and support structure to ensure strength and durability.
- Hydraulic System Installation
Install the hydraulic pump, cylinder, oil reservoir, and release mechanism to enable smooth lifting and lowering operations.
- Wheel and Handle Assembly
Install the steering wheels, load rollers, and operating handle to provide easy movement and directional control.
A Manual Stacker is a manually operated material handling equipment designed for lifting, stacking, and transporting palletized goods at different heights. It operates using a hydraulic pump system controlled by a hand lever or foot pedal, enabling smooth and efficient lifting with minimal effort. Its robust steel construction, compact design, and easy maneuverability make it ideal for warehouses, factories, workshops, and industrial applications. Manual stackers provide a cost-effective and reliable solution for material handling, helping improve workplace efficiency and reduce manual lifting efforts
